Pictures & screenshots of the current version v4.1


  Overview

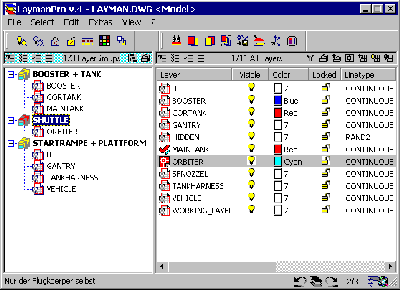

The way the LayerManager works - an overview of the working window

In paperspace/layouts, all layers, layergroups and hierarchies may be activated and de-activated in any viewport combination

configured foreground/background display order based on layers, layergroups and hierarchies can be saved to the drawing (since version v4.1 as "named display order") !

LayerManager structures may be exported to textfiles, and in any other drawing these may be imported - giving your drawings all company standards and normatives needed in a very fast and safe way.

"Registering LayerManager with AutoCAD" - registering LayerManager with any AutoCAD profile is elegant and simple

Listings of (all/selected) drawing layers for documentation may be saved in comfortable way.

Integrated bonus: with LayerTools you may control the drawing layers by reference entities - including Layer-Undo and "inverse" selection !


This less place is used by LayerManager, when you are working with the drawing - expanding immediately, when moving the mouse onto LayerManager ...

LayerManager provides fast amd elegant handling : many popup windows will appear automatically, and they also close automatically - you need exactly 1 click to change properties !

Popup, the second ...

Once again popup ...

The dockable searchbar will find any LayerManager object requested ...


Selecting layers based on special criteria is provided with "Selection-Filter" dialog
